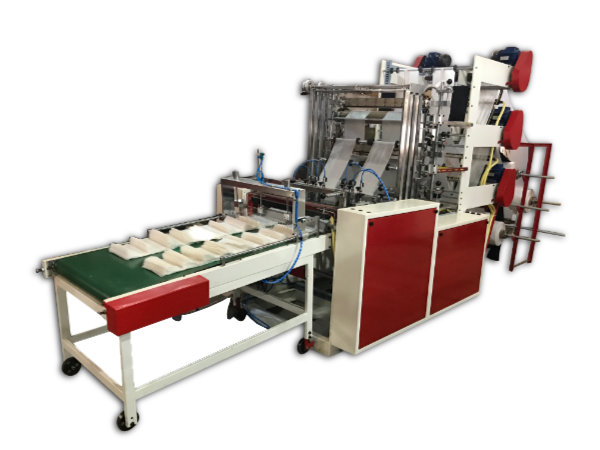

The high speed double and triple decker bottom seal bag making machines are suitable for making bottom sealed bags for various applications like liners, carry bags, nursery bags, grocery bags etc. These machines are particularly useful for converting plain non-printed LDPE, HDPE, PP rolls at a higher production rate.
| PM-600DB | PM-700DB | PM-800DB | |
| Sealing Stations | 2 | 2 | 2 |
| Max Bag Width (mm) | 600 | 700 | 800 |
| Max Draw Length (mm) | 1000 | 1000 | 1500 |
| Production Speed (Strokes/min) | 120 | 120 | 100 |
| Bag Thickness (Micron) | 10-100 | 10-100 | 10-100 |
| Connected Load (Kw) | 8 | 10 | 12 |
| Dimesions L x W x H (mtr) | 3.65 x 1.2 x 2 | 3.65 x 1.3 x 2 | 3.65 x 1.4 x 2 |
| PM-600TB | PM-700TB | PM-800TB | |
| Sealing Stations | 3 | 3 | 3 |
| Max Bag Width (mm) | 600 | 700 | 800 |
| Max Draw Length (mm) | 700 | 700 | 1000 |
| Production Speed (Strokes/min) | 120 | 120 | 100 |
| Bag Thickness | 10-100 | 10-100 | 10-100 |
| Connected Load (Kw) | 11 | 13 | 15 |
| Dimesions L x W x H (mtr) | 4.4 x 1.2 x 2.3 | 4.4 x 1.3 x 2.3 | 4.4 x 1.4 x 2.3 |
We also provide tailor made machines of web width ranging from 450mm to 1400mm.
